I. Essential Maintenance Schedule

Daily/Pre-Use: Drain filter bowl. Check pressure setting and oil level.
Weekly/Monthly: Inspect for external leaks. Check auto-drain function.
Every 6-12 Months: Replace filter element. Clean lubricator bowl, check-fill valve, and metering needle. Inspect regulator for diaphragm wear.

II. Troubleshooting Common Issues

Problem	Likely Cause	Solution
Pressure Dropping Under Load	1. Filter element clogged. 2. Regulator undersized (low Cv). 3. Supply pressure inadequate.	1. Replace filter. 2. Install a regulator with higher flow capacity. 3. Check upstream system.
Pressure Creep (Rising)	1. Regulator seat contaminated or worn. 2. Non-relieving regulator type used.	1. Clean or replace regulator cartridge. 2. Replace with a standard relieving regulator.
Excessive Oil Consumption	1. Lubricator drip rate set too high. 2. Excessive air flow/cycling.	1. Re-adjust to 1-3 drops/min during operation. 2. Check for system leaks or duty cycle.
No Oil Mist Output	1. Check valve stuck (bowl not pressurized). 2. Metering valve clogged. 3. Air flow too low to create vacuum.	1. Depressurize, disassemble, and clean. 2. Clean metering valve orifice. 3. Ensure unit is sized correctly for minimum flow.
Water in Downstream Air	1. Filter bowl full. 2. Auto-drain failed. 3. Ambient temperature below dew point.	1. Manually drain. 2. Repair/replace auto-drain. 3. Install a refrigerated or desiccant air dryer upstream.

III. Advanced Applications & Configurations

Centralized vs. Point-of-Use:
- Central FRL: A large unit at the compressor or manifold for bulk treatment. Simplifies maintenance.
- Point-of-Use FRL: Smaller units installed just before critical machines. Allows for customized pressure and lubrication for each tool, protecting against pressure drops and contamination in long lines.
Specialized Systems:
- Oil-Free Systems: Use FR Dryer Coalescing/Adsorbent Filter. No lubricator anywhere.
- Low-Temperature Environments: Use filters with antifreeze additives in the bowl or heated auto-drains.

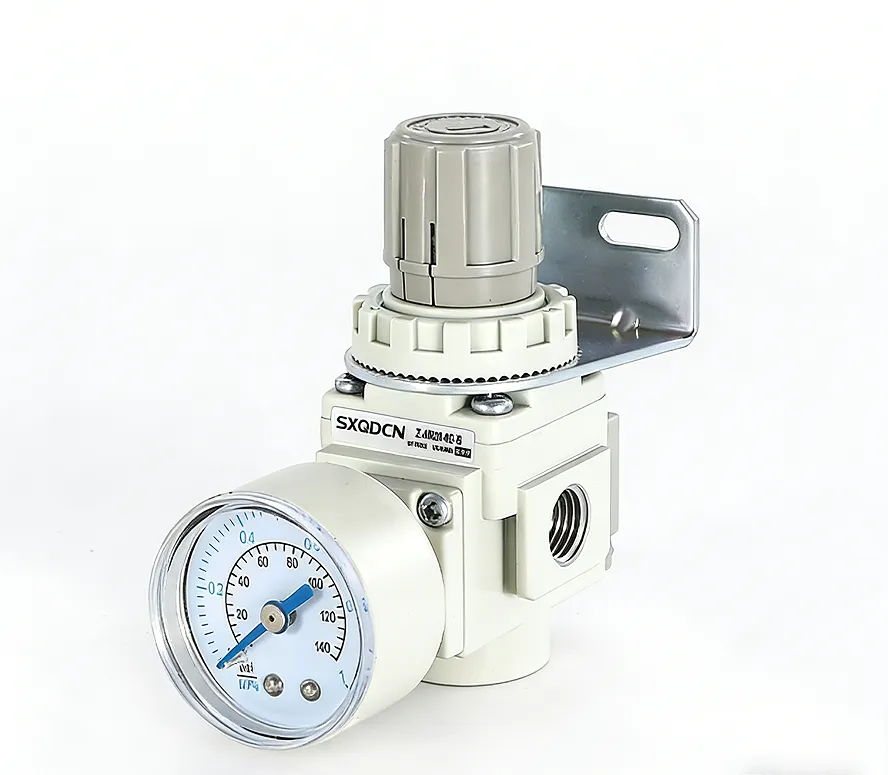

- Precision Pneumatics (e.g., Valves): Use a Micronic Filter Precision Regulator directly at the valve inlet for ultra-stable, clean air.
