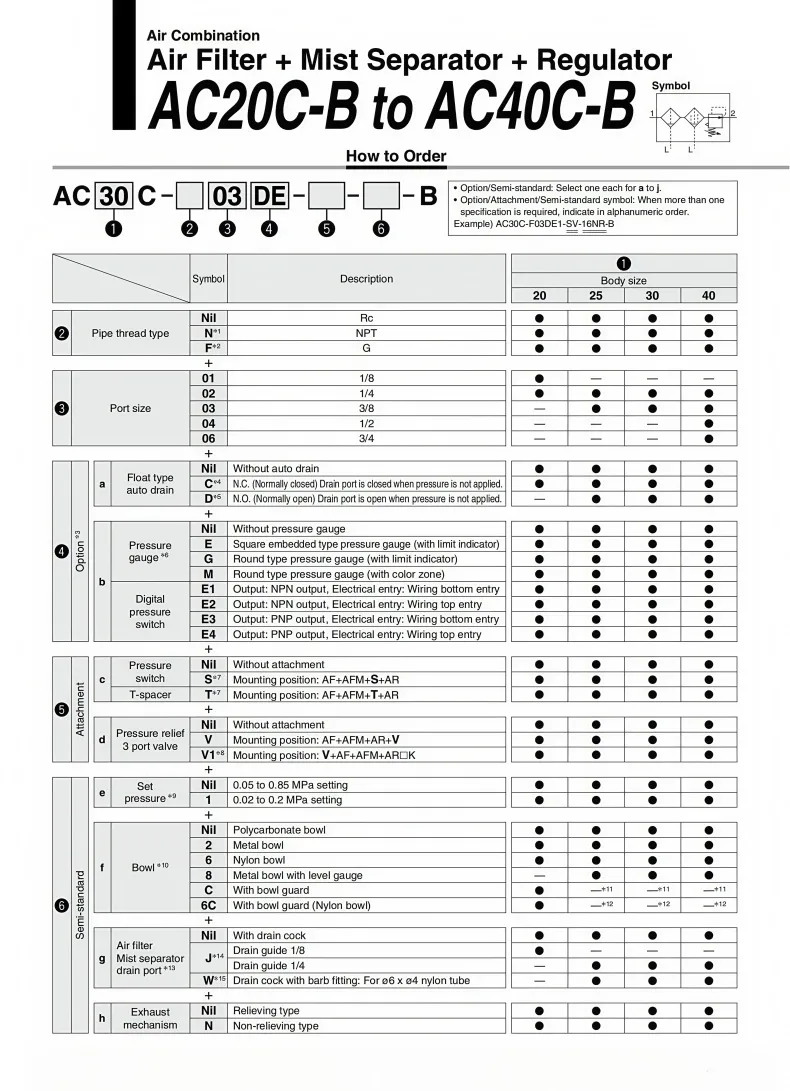

AC20C-02-B

AC series air combination

Air Filter + Mist Separator + Regulator

Component Function Introduction:

The AF series air filters remove impurities, oil, sewage, etc. from the compressed air, and store them in the filter to achieve the purpose of making the compressed air dry and clean.

The AR Series air relief regulator is used to adjust the pressure of compressed air. After adjusting to the appropriate pressure, the locking device should be locked to prevent accidental operation.

The AFM series of air filters have a filtration accuracy of 0.3um, precisely removing oil, impurities and dust.
