PCF4-01
PRODUCT PARAMETER
PCF series straight female thread brass material pneumatic Quick Connecting Tube Fittings

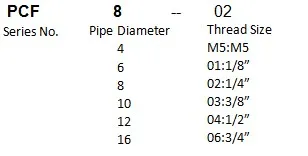

Order code
Technical parameter
|
Model |
PCF4-M5 PCF4-01 PCF4-02 PCF4-03 |
PCF6-M5 PCF6-01 PCF6-02 PCF6-03 PCF6-04 |
PCF8-M5 PCF8-01 PCF8-02 PCF8-03 PCF8-04 |
PCF10-01 PCF10-02 PCF10-03 PCF10-04 |
PCF12-01 PCF12-02 PCF12-03 PCF12-04 |
PCF14-03 PCF14-04 |
PCF16-03 PCF16-04
|
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Thread size |
M5,1/8”,1/4”,3/8”,1/2” |
|||||||
|
Material of body |
Brass |
|||||||

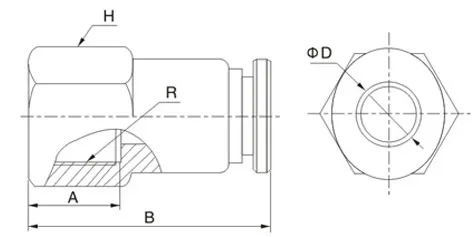

Dimension
|
Inch Type |
Metric Type |
φD |
R |
A |
B |
H |
|
PCF5/32-M5 |
PB4-M5 |
4 |
M5 |
6 |
24 |
10 |
|
PCF5/32-01 |
PCF4-01 |
4 |
G1/8 |
9 |
27 |
12 |
|
PCF5/32-02 |
PCF4-02 |
4 |
G1/4 |
11 |
29 |
15 |
|
PCF1/4-M5 |
PCF6-M5 |
6 |
M5 |
6 |
24 |
12 |
|
PCF1/4-01 |
PCF6-01 |
6 |
G1/8 |
9 |
28.5 |
12 |
|
PCF1/4-02 |
PCF6-02 |
6 |
G1/4 |
11 |
31 |
15 |
|
PCF1/4-03 |
PCF6-03 |
6 |
G3/8 |
12.5 |
31 |
19 |
|
PCF1/4-04 |
PCF6-04 |
6 |
G1/2 |
12.5 |
32 |
24 |
|
PCF5/16-01 |
PCF8-01 |
8 |
G1/8 |
9 |
29 |
14 |
|
PCF5/16-02 |
PCF8-02 |
8 |
G1/4 |
11 |
31 |
15 |
|
PCF5/16-03 |
PCF8-03 |
8 |
G3/8 |
12.5 |
32 |
19 |
|
PCF5/16-04 |
PCF8-04 |
8 |
G1/2 |
12.5 |
33 |
24 |
|
PCF3/8-01 |
PCF10-01 |
10 |
G1/8 |
9 |
33.5 |
17 |
|
PCF3/8-02 |
PCF10-02 |
10 |
G1/4 |
11 |
35 |
17 |
|
PCF3/8-03 |
PCF10-03 |
10 |
G3/8 |
12.5 |
35.5 |
19 |
|
PCF3/8-04 |
PCF10-04 |
10 |
G1/2 |
12.5 |
36.5 |
24 |
|
PCF1/2-01 |
PCF12-01 |
12 |
G1/8 |
9 |
33.5 |
19 |
|
PCF1/2-02 |
PCF12-02 |
12 |
G1/4 |
11 |
35.5 |
19 |
|
PCF1/2-03 |
PCF12-03 |
12 |
G3/8 |
12.5 |
36 |
19 |
|
PCF1/2-04 |
PCF12-04 |
12 |
G1/2 |
12.5 |
37 |
24 |
|
|
PCF14-03 |
14 |
G3/8 |
12.5 |
37.5 |
24 |
|
|
PCF14-04 |
14 |
G1/2 |
12.5 |
37.5 |
24 |
|
|
PCF16-03 |
16 |
G3/8 |
14 |
45.5 |
24 |
|
|
PCF16-04 |
16 |
G1/2 |
16 |
47.5 |
24 |
