TDA16-25
PRODUCT PARAMETER
TN Series double acting twin rod Double-Shaft guided air Cylinder
Order code
Symbol
Technical parameter
|
Bore size(mm) |
10 |
16 |
20 |
25 |
32 |
|
Acting type |
Double acting |
||||
|
Fluid |
Air |
||||
|
Operating pressure |
0.1~0.9MPa |
||||
|
Proof pressure |
1.35MPa |
||||
|
Temperature ℃ |
-5~60 |
||||
|
Cushion type |
bumper |
||||
|
Port size |
M5×0.8 |
1/8” |
|||
|
Body material |
Aluminum Alloy |
||||
Stroke
|
Bore size(mm) |
Standard stroke(mm) |
Tolerate stroke(mm) |
Max. Stroke(mm) |
|
10 |
10 20 30 40 50 60 70 |
70 |
100 |
|
16 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
|
20 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
|
25 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
|
32 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |

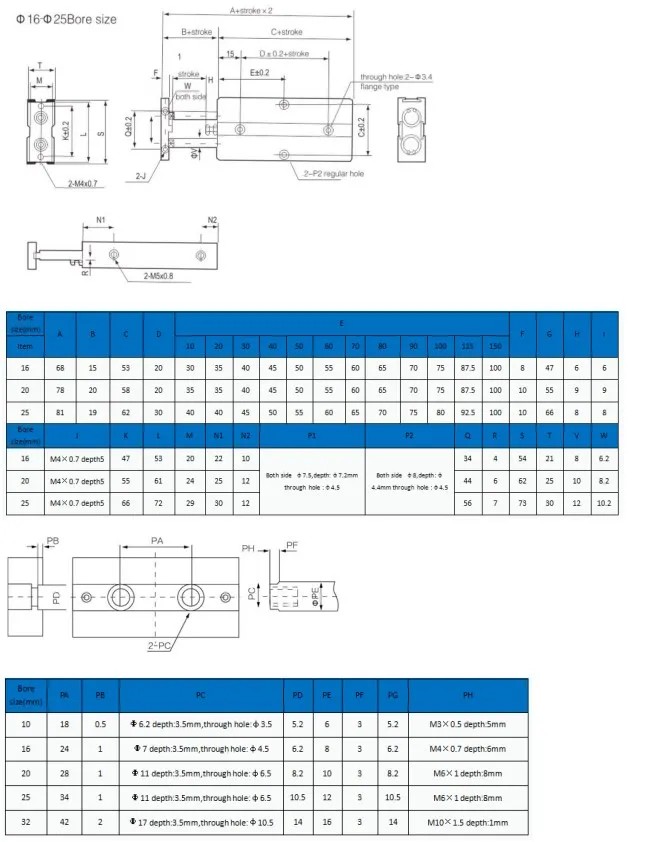

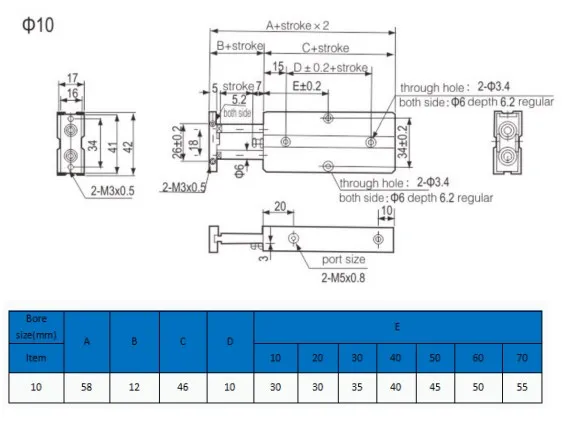

Dimension
Feature
.TN Series Double Shaft Two Rod Guide Cylinder Twin Pneumatic Air Cylinder with Magnet and suitable slot is designed for magnetic sensor fixing
.Embedding mounting and no need other brackets,room saving
.Easy to assemble and easy to maintain
.With self lubricating bearing,the piston rod is lubrication free.
.Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
