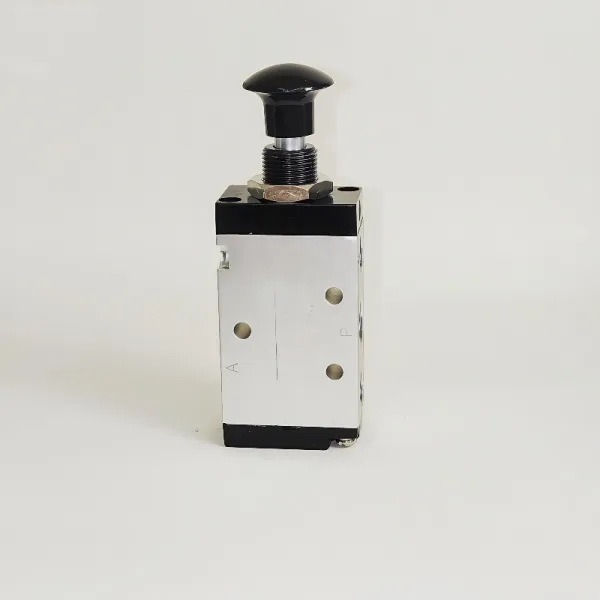

4R210
PRODUCT PARAMETER
5 Way 2 position Pneumatic air pilot Hand Draw Push Pull Valve

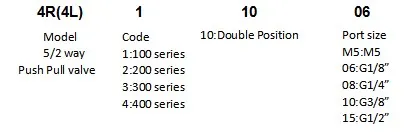

Order code
Symbol
Technical parameter
|
Model |
4R110-M5 (4L110-M5) |
4R110-06 (4L110-06) |
4R210-06 (4L210-06) |
4R210-08 (4L210-08) |
4R310-08 (4L310-08) |
4R310-10 (4L310-10) |
4R410-15 (4L410-15) |
|
Fluid |
Air |
||||||
|
Acting |
Manual control direct acting type |
||||||
|
Valve type |
5/2 way Push Pull Solenoid Valve |
||||||
|
Orifice size |
5.5mm2 |
12mm2 |
14mm2 |
16mm2 |
25mm2 |
30mm2 |
50mm2 |
|
Lubrication |
No required |
||||||
|
Port size |
M5 |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
||
|
Protective class |
IP65 |
||||||
|
Pressure range |
0-0.8MPa |
||||||
|
Proof pressure |
1.2MPa |
||||||
|
Material of body |
Aluminum Alloy |
||||||
|
Temperature |
-20℃~60℃ |
||||||
Dimension
Feature
Aluminum alloy Pneumatic Manual directional Hand operated pull valve 3R/4R series Push pull valve Mechanical valve is manual operation, smooth action, accurate and reliable positioning;
Sliding column structure, good sealing, small volume, light weight, easy disassembly;
Hand draw valve is panel installation, easy to install.
