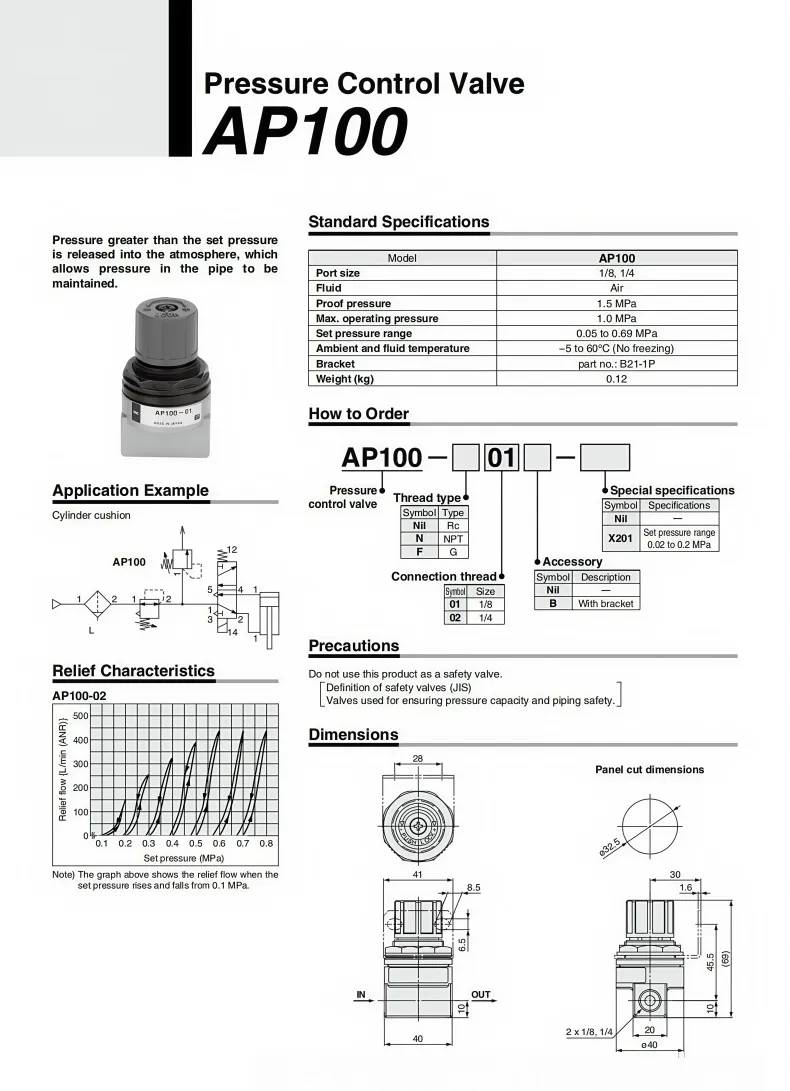

AP100-02

AP series Pressure Control Valve

The knob adjustment is precise and convenient. Precise adjustment. Efficient overflow.

Turn the blue knob to set the overflow pressure. Once the pressure setting is complete, use a Phillips screwdriver to tighten the screws and lock the pressure.

Installation Instructions: 1. Connect the overflow port to the muffler. 2. The bottom of the valve body is marked with an arrow indicating the direction of air intake.

Note: When installing, please ensure that the air intake direction is not reversed.
