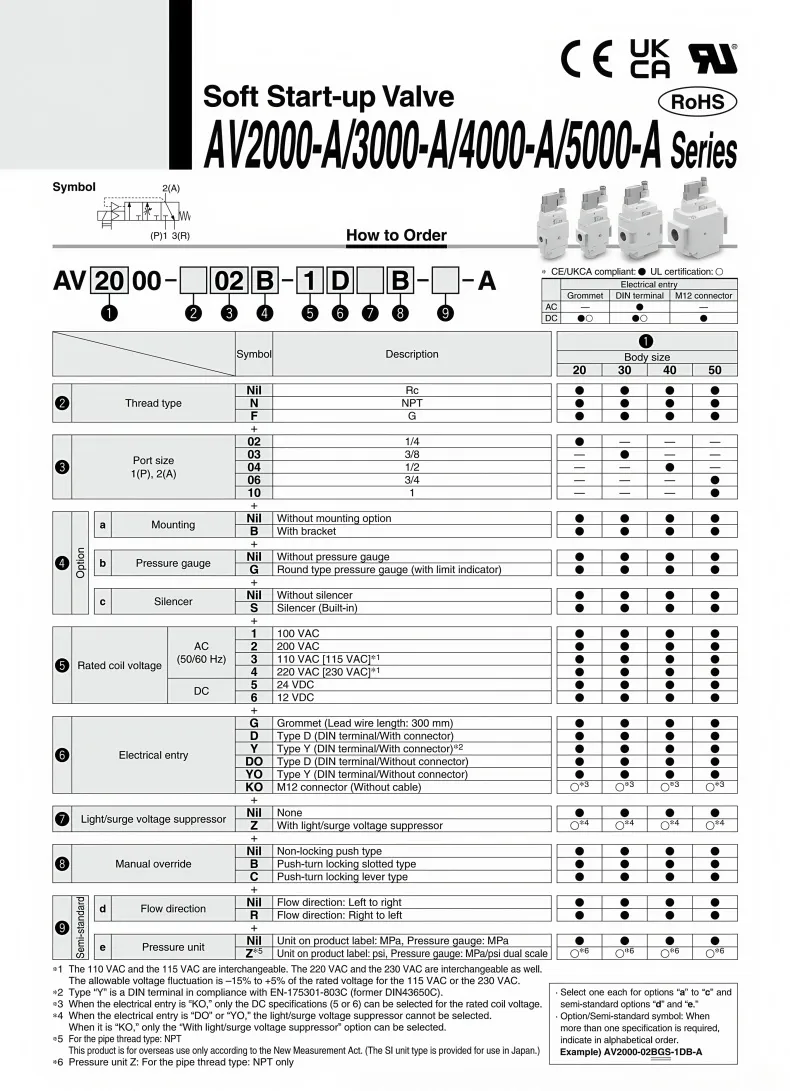

AV2000-02-5DZC-A

AV series Soft Start-up Valve
Low-speed air supply with stable performance.
Air source soft start enables the initial pressure in the pneumatic system to rise slowly, providing low-speed air supply. After the air supply is interrupted, it can perform rapid exhaust.
Pressing the rotary locking type - when discharging, by adjusting the locking knob, the manual button is locked to prevent accidental operation.
Low-speed air supply. More sensitive. Low-speed air supply to enhance the sensitivity of needle valve adjustment.
Effective energy saving leads to cost reduction. The amount of air consumed during the main valve switching is zero.
The surface of the valve body has an arrow indicating the direction of air intake (IN) and the direction of air outlet (OUT). Note: When installing, please ensure that the air intake direction is not reversed; otherwise, a significant amount of air leakage will occur.
