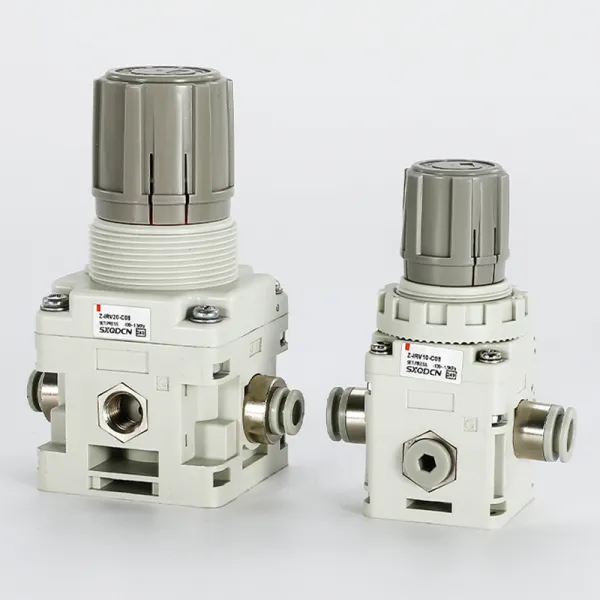

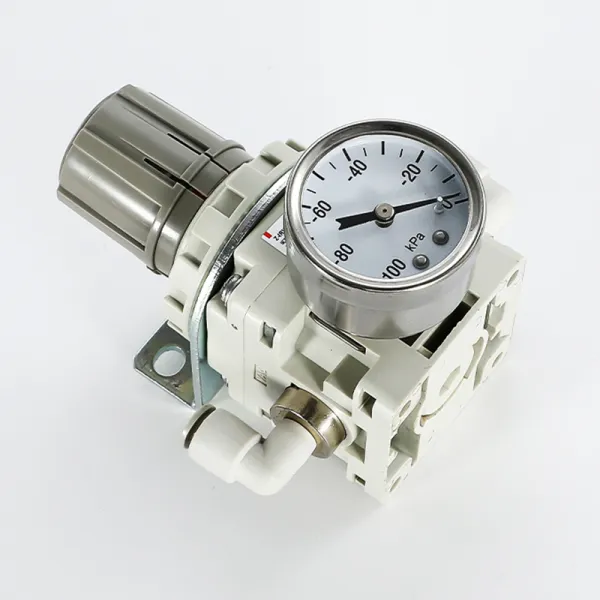

IRV10-C06

SMC type IRV series vacuum regulator the pressure range can be controlled -100~1.3KPA
Self-embedded lock prevent changes caused by interference after pressure setting to ensure normal pressure

Usage:

1.Pull out the pressure regulator knob 2.Rotate to adjust t he pressure. 3.Press down to lock the pressure

Compact structure with large flow strong sealing performance prevent air leakage

smooth pressure regulation and high flow output
