MA16-10
MA Series Stainless steel Mini CylinderCompact structure, saves spaceHigh-precision stainless steel cylinder body does not deform, does not leak, has good corrosion resistance and long service life.The expansion and contraction are smooth without any jerking sensation. The surface friction coefficient is as low as <0.3, reducing energy loss.Inductive cylinder sliding for transmitting signals. It needs to be used in conjunction with magnetic switch mounting slots. Applicable switches: D-C73, CS1-U, CMSG, etc.Can be fixed and then swing. The tail can be connected to the SDB bracket.
Product Detail
PRODUCT PARAMETER
MA series round body double action stainless steel Miniature pneumatic Air cylinder with magnetic

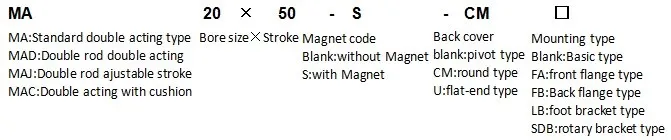

Order code
Symbol
Technical parameter
|
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
|
Acting type |
Double acting mini cylinders |
||||
|
Fluid |
Air |
||||
|
Operating pressure |
0.1~0.9MPa |
||||
|
Proof pressure |
1.35MPa |
||||
|
Temperature ℃ |
-5~60 |
||||
|
Cushion type |
No cushion |
||||
|
Port size |
M5 |
1/8” |
|||
|
Body material |
Stainless Steel |
||||
Stroke
|
Bore size(mm) |
Standard stroke(mm) for MA stainless steel mini cylinder |
Max std stroke(mm) |
Max Stroke(mm) |
|
16 |
25 50 75 100 125 150 175 200 |
300 |
500 |
|
20 |
25 50 75 100 125 150 175 200 300 |
500 |
650 |
|
25 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |
|
32 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |
|
40 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |

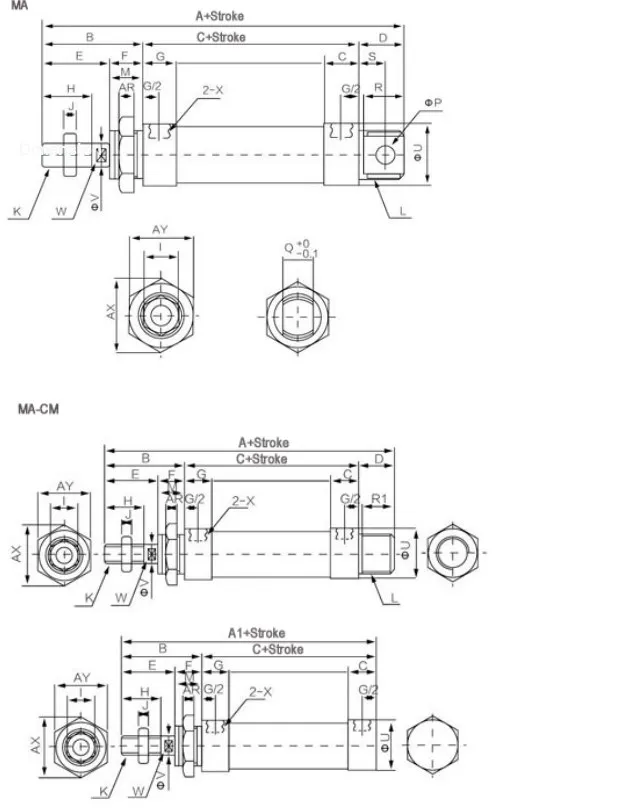

Dimension
