PA-4
PA series Speed regulating valveThe main body is made of high-strength plastic and stainless steel retaining rings, which are resistant to aging and wear. It features a dual rubber sealing structure to prevent air leakage.Quick connection to the air pipe. Just align the air pipe with the air inlet and insert it directly to achieve a sealed and leak-proof effect.Built-in clamping force retaining ring lock air pipe, high pressure resistant and will not come off.Resistant to high and low temperatures - from -20°C to 90°C, applicable in various scenarios
Product Detail
PRODUCT PARAMETER
LSA series Pneumatic Throttle Flow Control Valve Quick Coupling Hose Fitting
Order code
Technical parameter
|
Model |
LSA-4 |
LSA-6 |
LSA-8 |
LSA-10 |
LSA-12 |
LSA-14 |
LSA-16 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm,14mm,16mm |
|||||||

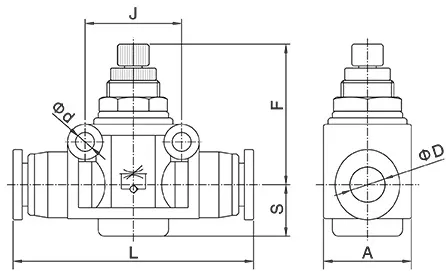

Dimension
|
Metric Type |
φD |
A |
L |
S |
F |
J |
φd |
Panel mount size |
|
LSA-4 |
4 |
11 |
44 |
7 |
20 |
14 |
3.3 |
- |
|
LSA-6 |
6 |
15 |
48 |
9.5 |
32 |
20 |
4 |
12.5 |
|
LSA-8 |
8 |
20 |
55 |
11.5 |
36 |
22 |
4.3 |
12.5 |
|
LSA-10 |
10 |
21 |
69 |
11 |
37.5 |
26 |
4.3 |
|
|
LSA-12 |
12 |
28 |
78 |
16 |
38.5 |
32 |
4.3 |
|
|
LSA-14 |
14 |
30 |
85 |
20 |
36 |
34 |
4.5 |
|
|
LSA-16 |
16 |
30 |
87 |
20 |
36 |
34 |
4.5 |
|
