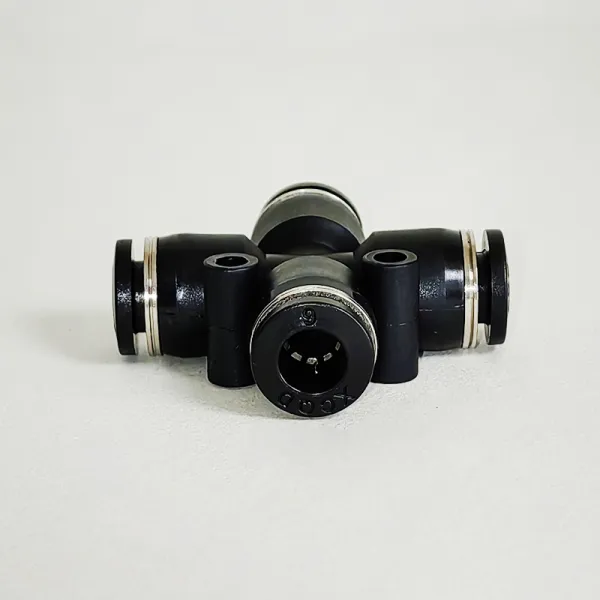

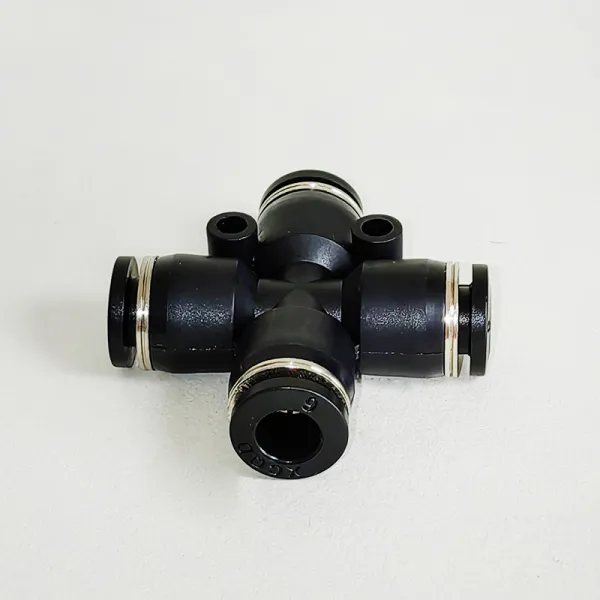

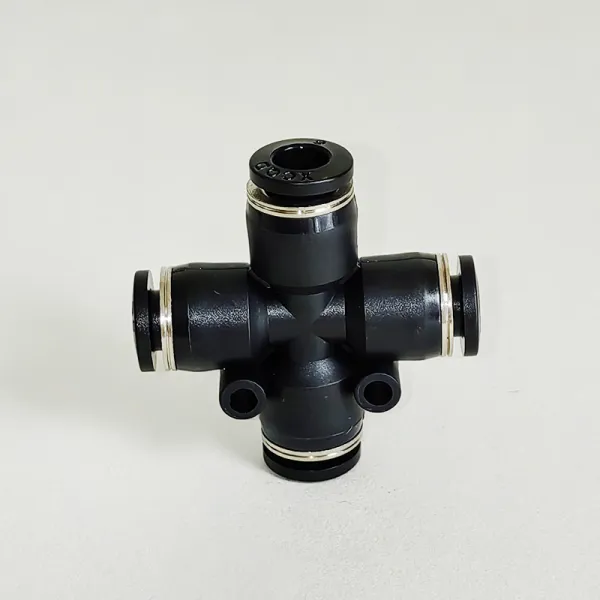

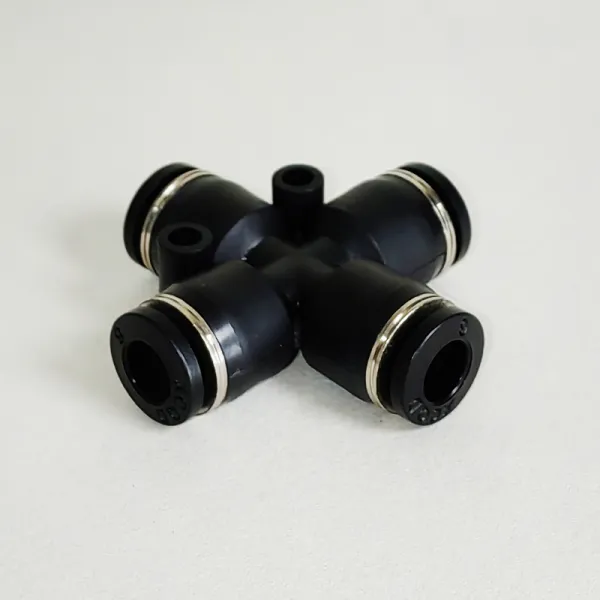

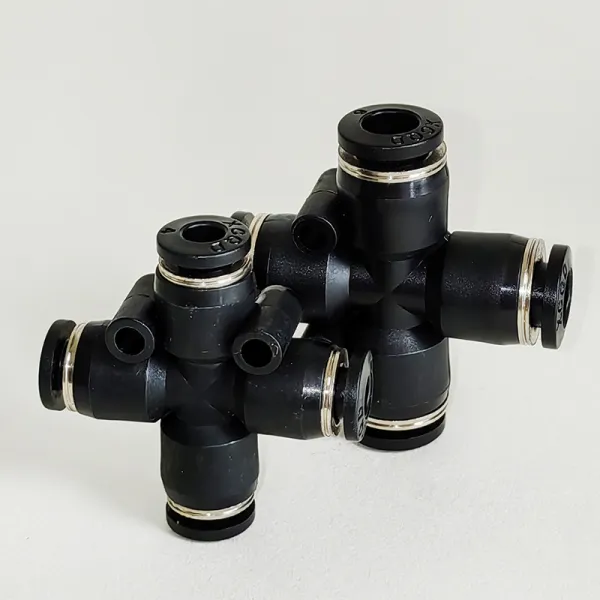

PZA-4
PZA series Equal reducing fittingCircular release cap cover. Made of (POM) material, which is more environmentally friendly.Tight-fitting ferrule, zinc alloy material, more resistant to high pressureStainless steel clamping jaws - highly resilient and capable of repeated insertion and removalCombined sealing ring with special groove design to enhance sealing performanceFully automatic CNC processing - no burrs, wear-resistant, no leakage360°rotating cap cover - Simple and ingenious, meeting various piping requirements
Product Detail
PRODUCT PARAMETER
PZA Pneumatic 4 way Push To Connect plastic Tube air Fittings
Order code
Technical parameter
|
Model |
PZA-4 |
PZA-6 |
PZA-8 |
PZA-10 |
PZA-12 |
|
|
Fluid |
Air |
|||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||
|
Temperature |
0℃~60℃ |
|||||
|
Applicable tube |
PU/Nylon tube |
|||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm |
|||||

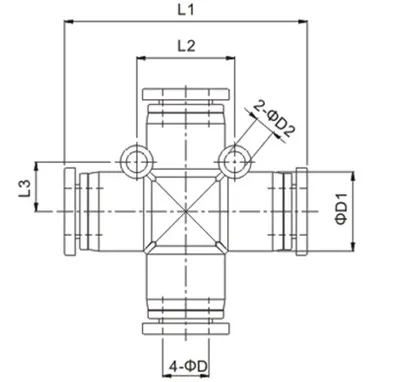

Dimension
|
Metric Type |
φD |
φD1 |
φD2 |
L1 |
L2 |
L3 |
|
PZA4 |
4 |
11.5 |
3.2 |
38 |
14 |
7 |
|
PZA6 |
6 |
13.5 |
3.2 |
39 |
16 |
8 |
|
PZA8 |
8 |
15 |
4.2 |
45 |
18 |
9.5 |
|
PZA10 |
10 |
19 |
4.2 |
57 |
24 |
12 |
|
PZA12 |
12 |
21.5 |
4.2 |
59 |
26 |
13 |
