PG10-8 PG12-10
PRODUCT PARAMETER
PG series plastic Push-in Fittings Straight One Touch Change Size Reducing Tube Connector
Order code
Technical parameter
|
Model |
PG6-4 |
PG8-4 PG8-6 |
PG10-6 PG10-8 |
PG12-8 PG12-10 |
PG14-12 |
PG16-12 |
|
Fluid |
Air |
|||||
|
Max. Pressure |
0-1.0Mpa |
|||||
|
Temperature |
0℃~60℃ |
|||||
|
Applicable tube |
PU / PA / PE / PVC |
|||||
|
Outer diameter of Tube |
4mm/6mm/8mm/10mm/12mm/14mm/16mm |
|||||

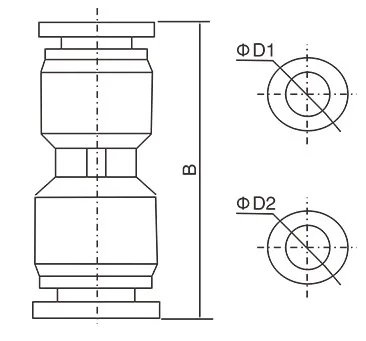

Dimension
|
Inch Type |
Metric Type |
ΦD1 |
ΦD2 |
B |
|
PG1/4-5/32 |
PG6-4 |
6 |
4 |
35 |
|
PG5/16-5/32 |
PG8-4 |
8 |
4 |
36.5 |
|
PG5/16-1/4 |
PG8-6 |
8 |
6 |
36.5 |
|
PG3/8-1/4 |
PG10-6 |
10 |
6 |
40 |
|
PG3/8-5/16 |
PG10-8 |
10 |
8 |
40.5 |
|
PG1/2-1/4 |
PG12-6 |
12 |
6 |
43.3 |
|
PG1/2-5/16 |
PG12-8 |
12 |
8 |
44 |
|
PG1/2-3/8 |
PG12-10 |
12 |
10 |
45.5 |
|
|
PG14-10 |
14 |
10 |
45.5 |
|
|
PG14-12 |
14 |
12 |
46 |
|
|
PG16-12 |
16 |
12 |
48.5 |
|
|
PG16-14 |
16 |
14 |
67 |
Feature
PG Direct One Touch Change Size Reducing Tube Connector is easy to install and remove.
High pressure resistance and no release.
Designed for Polyurethane or Nylon tubing.
Made from nickel plated brass for corrosion resistance.
Even after installation, the direction of the tube can be changed freely.
With the hex type, its convenient to install even in the narrow place.
