ZU05S 05L

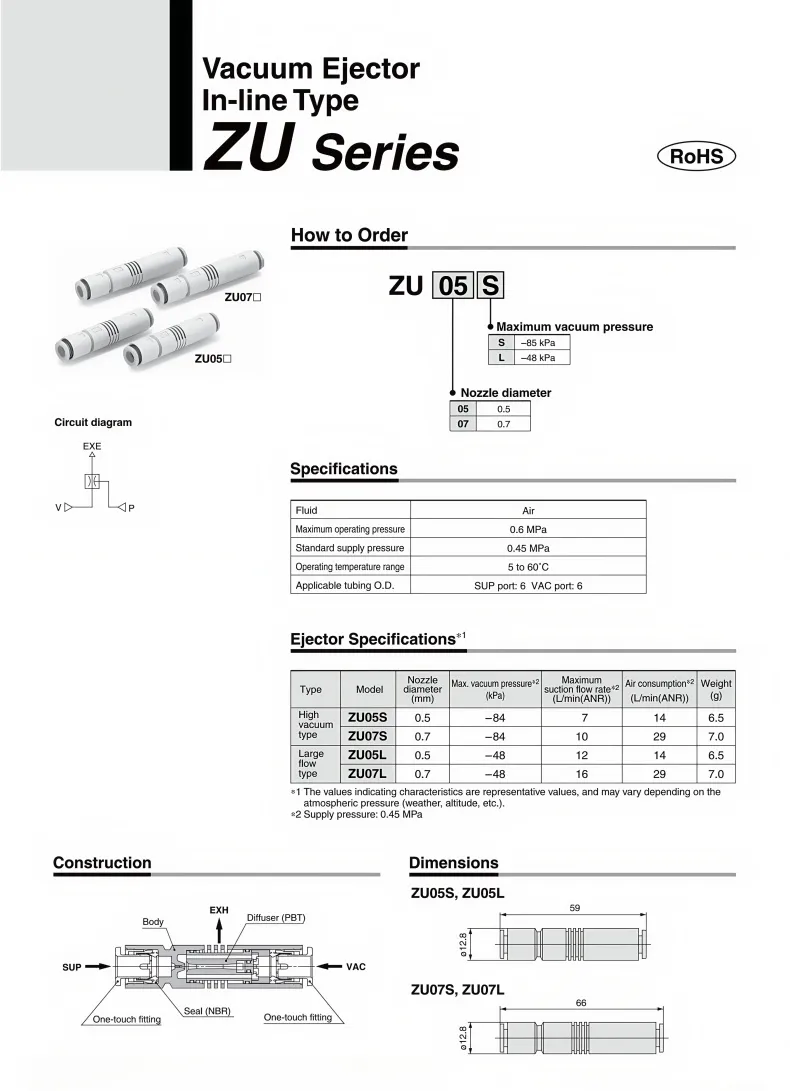

ZU series Straight through vacuum generator

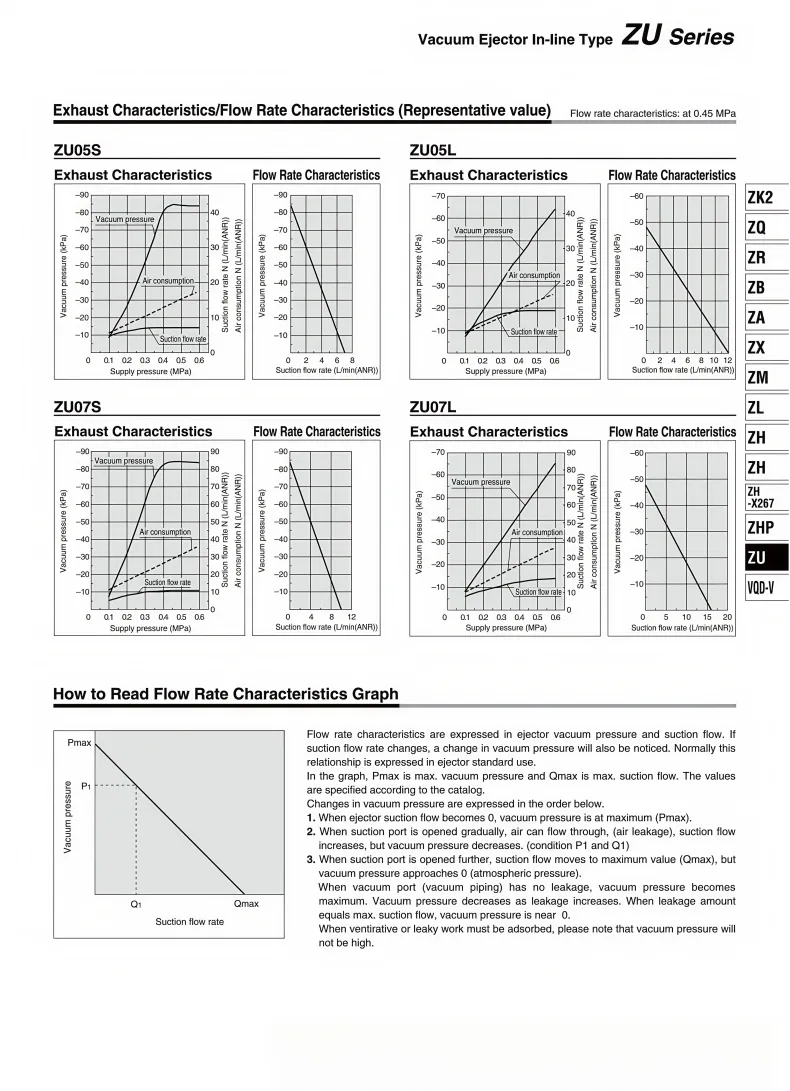

S is a high-vacuum type, while L is a high-flow type. L is designed for situations where there is air leakage in the vacuum system, such as when absorbing breathable materials. The above figure shows the comparison of flow rates for the S-type and L-type. It can be observed that when the leakage reaches around 12L/min, the pressure of the S-type vacuum generator has dropped to 0, while the L-type vacuum generator still maintains a vacuum pressure of -40kPa.
Quick-change connector, convenient to install, slender plastic housing, axial connection method
The VFJ vacuum filter can be easily installed and the connection is convenient. No additional installation accessories are required.
Directly installed on the hose, it is suitable for use in confined spaces and is durable and long-lasting.
High-strength resin, lightweight and compact piping is installed along the way, saving installation space.
